Few automotive inconveniences compare to the sinking feeling of turning your key in the ignition or pressing the push-to-start button, only to be greeted by a sluggish crank, a rapid clicking sound, or absolute silence. A failing car battery can completely derail your day, leaving you stranded in a parking lot or late for an important appointment. While roadside assistance and auto parts stores can test your battery for you, relying on them isn’t always convenient or free.
Fortunately, diagnosing your vehicle’s electrical health doesn’t require expensive diagnostic scanners or an immediate trip to a professional mechanic. By learning how to test a car battery with a multimeter, you can take control of your own vehicle maintenance, save diagnostic fees, and accurately pinpoint whether your battery is dead, dying, or simply in need of a recharge.
Understanding Your Car Battery: The Basics
Before diving into the testing procedure, it helps to understand what is actually happening inside your car’s power source. Most standard passenger vehicles rely on a 12-volt lead-acid battery. Inside this heavy plastic casing, six individual cells are connected in series. Each fully charged cell generates roughly 2.1 volts of electricity, resulting in a combined nominal resting voltage of approximately 12.6 volts when the battery is at 100% capacity.
Automotive batteries are designed to deliver massive bursts of electrical current for a short duration to power the starter motor. Once the engine is running, the battery’s job shifts to acting as a voltage stabilizer, while the alternator takes over supplying power to the vehicle’s electrical accessories (such as headlights, radio, fuel injectors, and air conditioning) and recharging the battery for the next trip.
Over time, chemical degradation, sulfation on the lead plates, extreme weather fluctuations (both freezing winters and scorching summers), and internal short circuits reduce the battery’s ability to hold a charge. Regular testing helps you catch these issues before they manifest as sudden failure.
Tools and Equipment Needed
To perform an accurate battery health check, you only need a few basic items:
- Digital Multimeter: A standard digital multimeter (available at any hardware or auto parts store) capable of measuring direct current (DC) voltage.
- Safety Gear: Nitrile or heavy-duty work gloves and safety glasses to protect against potential acid residue or sparks.
- Wire Brush or Terminal Cleaner: Optional, but useful if you spot white or blue corrosion on your battery terminals.
- A Helper: Helpful (though not strictly mandatory) when it comes time to test the cranking voltage while turning the ignition key.
Step-by-Step Preparation: Setting Up Your Multimeter
Precision matters when working with electrical systems. Incorrectly configuring your multimeter will result in inaccurate readings or blown internal fuses within the meter itself.
1. Configure the Test Leads
- Take the black test lead and plug it firmly into the port labeled COM (Common).
- Take the red test lead and plug it into the port labeled V (Voltage/Resistance).
2. Set the Selection Dial
- Turn the rotary dial on your multimeter to the DC Voltage section. On most multimeters, DC voltage is represented by a solid horizontal line with a dashed line directly underneath it ($V⎓$ or $DCV$).
- Adjust the range setting to 20V. Because a car battery operates at roughly 12 to 14 volts, the 20V setting provides the highest degree of measurement accuracy.
3. Eliminate the Surface Charge
Car batteries frequently build up a temporary “surface charge” immediately after the vehicle has been driven or when they have just been taken off a battery charger. This surface charge creates a falsely elevated voltage reading that does not reflect the true health of the battery.
- To remove this surface charge, turn on your vehicle’s high-beam headlights for 1 to 2 minutes with the engine completely turned off.
- Turn the headlights off, pop the hood, and give the battery a minute to stabilize before beginning your diagnostics.

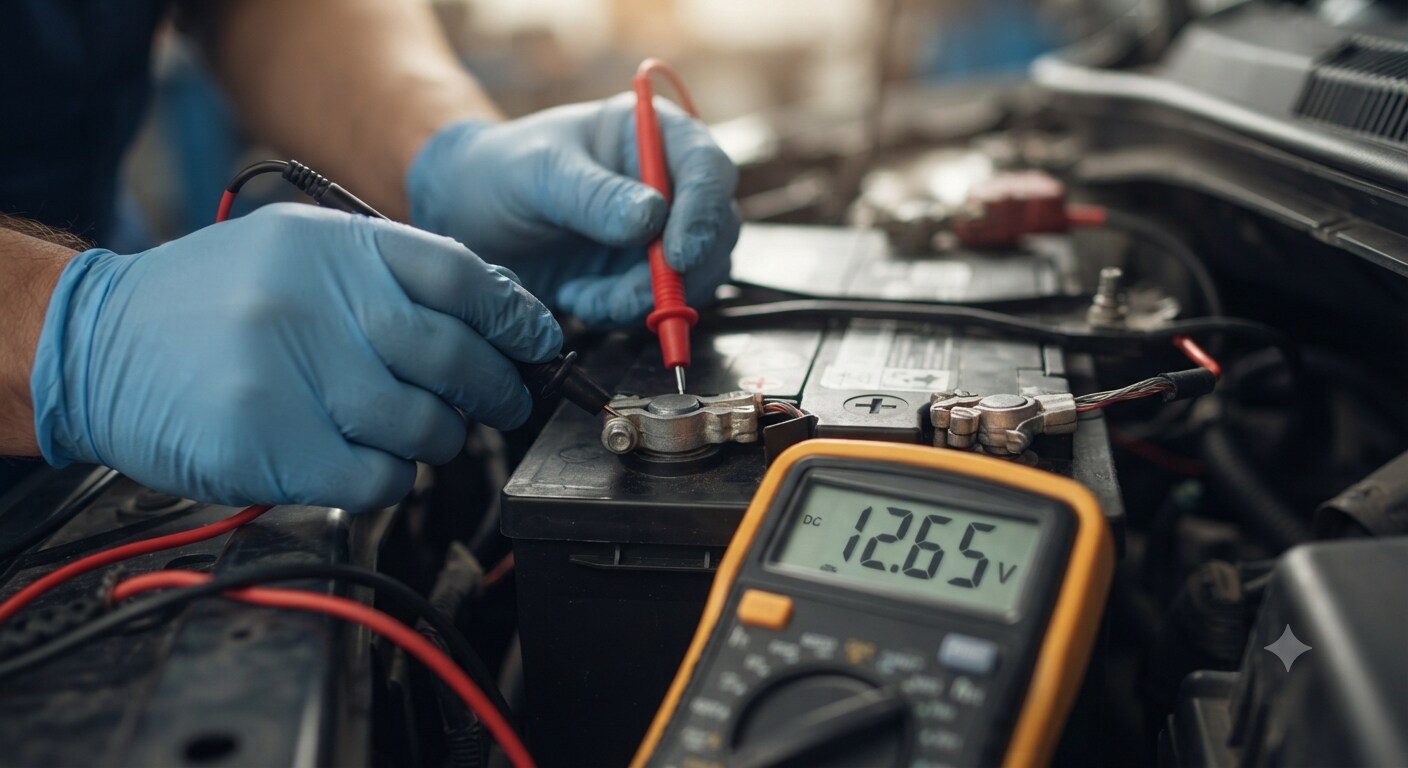

Step 1: Testing Resting Voltage (Engine Off)
The resting voltage test is your primary baseline check. It tells you how much electrical energy your battery is holding when no loads are pulling current from it.
- Locate your car battery under the hood. Identify the positive (+) terminal, which is usually marked in red or has a plus sign stamped into the plastic housing, and the negative (–) terminal, marked in black with a minus sign.
- Touch the red probe of your multimeter securely to the positive terminal.
- Touch the black probe of your multimeter securely to the negative terminal.
- Look at the digital screen of your multimeter and record the stable voltage reading.
Interpreting Your Resting Voltage Readings
- 12.6V or Higher: Your battery is fully charged, healthy, and operating at peak performance.
- 12.4V: Your battery is sitting at approximately 75% charge. This is normal operation, especially for vehicles driven infrequently.
- 12.2V: Your battery is at roughly 50% capacity. While it will likely still start your car, it indicates that the battery is losing its ability to hold a deep charge and may need an external recharge or a long highway drive.
- Below 12.0V: Your battery is deeply discharged, heavily sulfated, or suffering from a dead cell. Even if you manage to jump-start the car, a battery resting below 12.0V is severely compromised and will likely need replacement.
Step 2: Testing Cranking Voltage (Starting the Engine)
A battery can pass a resting voltage test with flying colors yet still fail instantly when placed under a heavy load. The cranking voltage test measures how well your battery performs when the starter motor draws massive amounts of current.
- Leave your multimeter probes securely attached to the positive and negative battery terminals, ensuring they do not slip off during engine vibration.
- Instruct your helper to turn the ignition key and start the engine (or press the start button if working with a modern push-to-start vehicle). Alternatively, if working alone, place your multimeter where it is clearly visible through the windshield or use alligator clip extensions on your probes.
- Observe the digital screen closely as the engine cranks over. The voltage will naturally dip due to the immense power draw required by the starter motor.
- Evaluate the drop: Watch for the lowest voltage point reached during cranking. The voltage should not drop below 10.0 volts.
- If the voltage plunges below 10.0V (or drops below 9.5V during warm summer weather), your battery lacks the necessary cold-cranking amps (CCA) and internal reserve capacity. This is a definitive sign of a weak battery that requires immediate replacement.
Step 3: Testing the Alternator (Engine Running)
Sometimes, drivers mistakenly replace a perfectly good battery when the underlying culprit is actually a failing alternator. The alternator is responsible for generating electrical power while the engine runs and replenishing the energy your battery expends during starting.
- Keep your engine running smoothly after completing the cranking voltage test.
- Leave the multimeter probes securely connected to the battery terminals.
- Observe the digital display. With the engine running and charging system engaged, the voltage reading should jump up significantly—typically landing somewhere between 13.5V and 14.5V.
- Diagnose the charging system:
- A reading between 13.5V and 14.5V confirms that your alternator is healthy and actively pumping a charging current back into the battery.
- If the reading remains flat at 12.6V or lower, your alternator is failing and not charging the system.
- If the reading climbs excessively high (above 15.0V), your voltage regulator is broken, which can easily overcharge, boil, and ruin a brand-new battery.
Comprehensive Quick Reference Guide
For rapid diagnostics in the garage, keep this data table handy to compare your multimeter readings against standard health thresholds:
| Diagnostic Test Phase | Target Voltage Range | Health Status & Meaning |
| Multimeter Setup | 20V DC Setting | Correct configuration for testing 12V automotive electrical systems. |
| Resting Voltage (Healthy) | 12.6V or Higher | Fully charged, excellent internal health. |
| Resting Voltage (Moderate) | 12.2V – 12.4V | 50% to 75% charge; operational, but monitor closely or recharge. |
| Resting Voltage (Failing) | Below 12.0V | Discharged, heavily degraded, or dead cell. Replacement recommended. |
| Cranking Voltage Limit | Do not drop below 10.0V | Indicates healthy starter motor current draw and adequate reserve power. |
| Alternator Output | 13.5V to 14.5V | Charging system is active and functioning properly while engine runs. |
Common Signs Your Car Battery is Failing
Knowing how to test a car battery with a multimeter is empowering, but recognizing early warning signs can save you from getting stranded in the first place. Keep an eye out for these common red flags:
- Slow Engine Crank: When you turn the key, the engine sounds sluggish, taking longer than usual to catch and start up.
- Dim Headlights at Idle: Your headlights appear noticeably brighter when you rev the engine and dim down when you come to a complete stop at a red light.
- Electrical Component Glitches: Power windows roll up unusually slowly, the radio resets itself, or dashboard warning lights (such as the battery symbol or check engine light) flicker intermittently.
- Physical Deformities: Swelling, bulging, or cracking of the battery plastic case, often caused by extreme heat or internal freezing.
- Foul Odor: A distinct sulfur or rotten egg smell near the engine bay, indicating an internal battery leak or severe overcharging by a faulty alternator.
Frequently Asked Questions
Can I test a car battery without disconnecting it from the car?
Yes, absolutely! Testing a car battery with a multimeter is designed to be performed right under the hood while the battery is fully hooked up in its regular location. This in-situ testing approach is actually preferred because it allows you to perform all three crucial diagnostic steps—resting voltage, cranking voltage, and alternator output—without disturbing the terminal connections.
What happens if I accidentally reverse the multimeter probes?
If you mistakenly touch the red probe to the negative terminal and the black probe to the positive terminal, modern digital multimeters will not harm your vehicle or blow up. Instead, the meter will simply display a minus sign (-) in front of the numerical reading (for example, -12.6V). This indicates reversed polarity, meaning you just need to swap the leads to get a normal, positive reading.
How often should car owners test their battery?
It is best practice to test your car battery at least twice a year—ideally during seasonal transitions in late autumn before winter freezes set in, and in mid-summer when extreme heat accelerates internal battery wear. If your battery is more than three to four years old, more frequent checks are strongly recommended.
Is a 12.4V battery considered bad?
Not necessarily. A 12.4V reading means your battery is sitting at roughly 75% state of charge. While it is fully functional and capable of starting your vehicle, it may indicate that your daily commute consists of short trips where the alternator doesn’t run long enough to top the battery back up to 100%. Giving it an overnight boost with an external smart charger can often restore its full capacity.
Conclusion
Mastering how to test a car battery with a multimeter puts you firmly in the driver’s seat of your own vehicle maintenance, saving you unnecessary repair bills and unexpected roadside headaches. By systematically checking your resting voltage, monitoring the voltage drop under heavy starter load, and verifying your alternator’s output, you can accurately diagnose electrical health in under ten minutes.
Safety Warning: Always wear protective eyewear and gloves when working around automotive batteries. Remove all metal jewelry, rings, and watches before handling tools near battery terminals to prevent accidental short circuits, sparks, or chemical burns. Ensure your work area is well-ventilated at all times.
